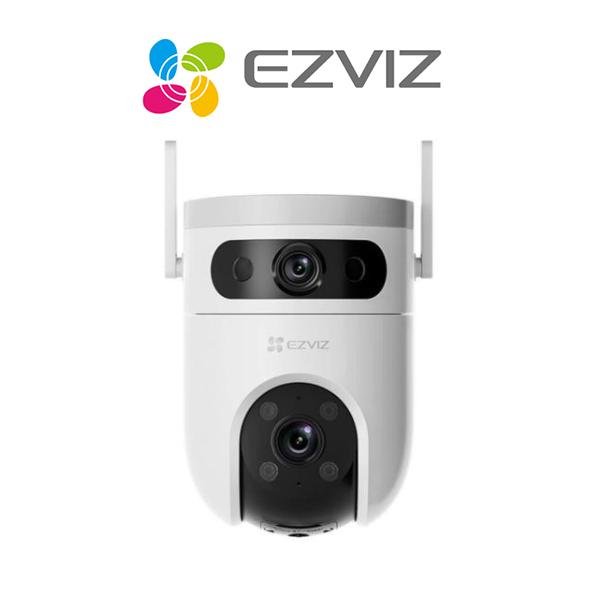

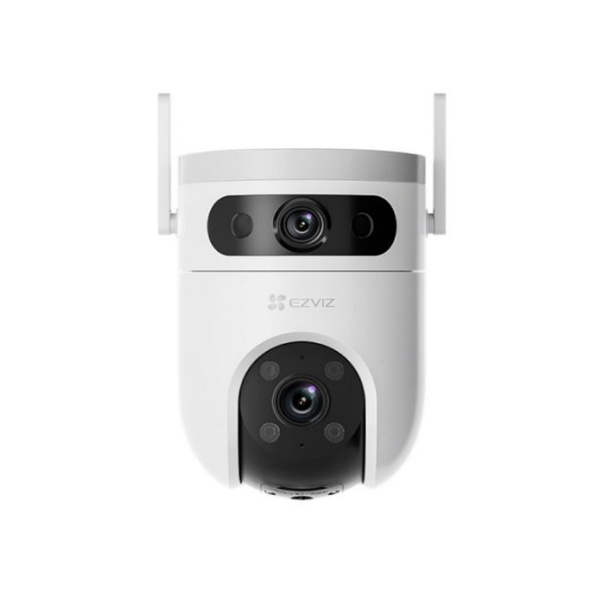

EZVIZ Cs-H9C 3Mp Dual Lens WiFi PT Camera

Description

EZVIZ Cs-H9C 3Mp 4Mm Dual Lens WiFi

Automated. All-round. Almighty: The new addition to EZVIZ’s highly acclaimed PT Series, the dual-lens H9c 2K demonstrates the future of security automation with multiple unique technologies. Its two cameras work interactively to protect larger areas with minimal manpower, achieving results comparable to a multi-camera system. It alerts to important events, follows ongoing activities, and patrols key locations from time to time – all automatically.

Dual lenses. Double security: With EZVIZ’s unique dual-lens technology, the H9c provides unparalleled protection that’s beyond professional. It uses a wide-angle lens on top of a telephoto pan-and-tilt lens – the duo works independently or together in a way that is much smarter than your ordinary camera.

Specifications:

Model – CS-H9c-R100-8H33WKFL

Camera
Image Sensor – 1/2.7″ Progressive Scan CMOS
Shutter Speed – Self-adaptive shutter
Lens Upper Camera – 2.8mm@ F1.6, viewing angle: Diagonal 130`b0, Horizontal 108`b0, Vertical 56`b0 Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62`b0, Horizontal 55`b0, Vertical 28`b0
PT Angle Pan – 350`b0, Tilt: 80`b0
Minimum Illumination – 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount  – M12
Day & Night – IR-cut filter with auto-switching
DNR – 3D DNR
WDR – Digital WDR
Black & White Night – 30m / 98ft

Video & Audio
Max Resolution – 2304 `d7 1296
Frame Rate Max – 15fps; Self-Adaptive during network transmission
Video Compression – H.265 / H.264
H.265 Type – Main Profile
Video Bit Rate – Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
Audio Bit Rate – Self-Adaptive

Network
Wi-Fi Standard-  IEEE802.11b, 802.11g, 802.11n
Frequency Range-  2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports – 20MHz
Transmission Rate – 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing – AP paring
Protocol – EZVIZ cloud proprietary protocol
Interface Protocol – EZVIZ cloud proprietary protocol
Wired Network – RJ45 `d7 1 (10M / 100M Adaptive Ethernet Port)
Security – WPA-PSK/WPA2-PSK

Functions

• Smart Alarm AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection /
• Motion Detection
• Auto Tracking Supports
• Customized Alert Area Supports
• Two-way Talk Supports
• Preset Locations Supports
• General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage
Local Storage Supports – microSD Card (Up to 512 GB)
Cloud Storage Supports – EZVIZ CloudPlay storage

General
Operating Conditions – -30`b0C to 50`b0C ( -22 `b0F to 122 `b0F ) Humidity 95% or less (non-condensing)
IP Grade – Weatherproof Design
Power Supply – DC 12V/1.5A
Power Consumption – MAX. 12W



What is in the box:

1 x EZVIZ Cs-H9C 3Mp 4Mm Dual Lens WiFi
